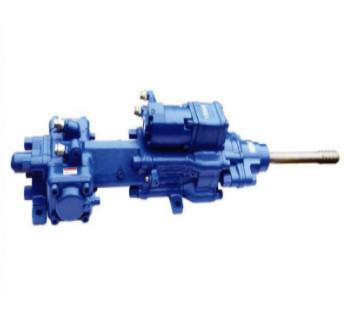

    YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J

    Ask Lasest Price
    Brand Name : YYG
    Model Number : YYG 260
    Price : Price negotiations
    Payment Terms : T/T
    Supply Ability : 1+PCS+20 work days
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J

    Rock Drilling Tools YYG 260 hydraulic rock drill used in surface mining, underground deep hole

    Product feature of Rock Drilling Tools

    YYG260 is used in surface mining, underground deep hole.
    Contains a high strength spline sleeve for T51 specifications.
    Effective aperture is 127mm or maximum aperture 165mm.

    Product data of Rock Drilling Tools

    Technical data
    Percussion Oil Pressurebar175
    Percussion Oil Flowl/min140
    Rotation Oil Pressurebar150
    Rotation Oil Flowl/min70
    Rotation torque(max)Nm1500
    Rotation speed(max)rpm190
    Percussion frequencymin2500-3700
    Percussion energyJ450
    Output energykW30
    Drilling diametermm127 - 165
    Weightkg260
