Brand Name : | YDH |
Model Number : | YHD950 |
Price : | Price negotiations |
Payment Terms : | T/T |
Supply Ability : | 1+PCS+20 work days |
Delivery Time : | 20 work days |

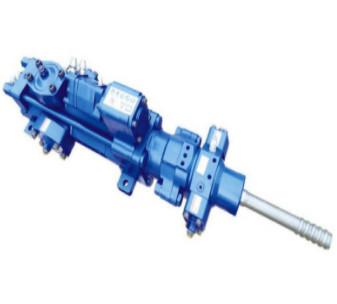

Rock Drilling Tools YHD950 hydraulic rock drill high strength spline sleeve suitable for T51 or T45 specifications
Product feature of Rock Drilling Tools
The YHD950 contains a high strength spline sleeve suitable for T51
or T45 specifications.
The YHD950 has a reverse impactor on the front end to reduce the
risk of stuck drillstring loss.
Efficient impact piston design ensures long duration, stable high
speed drilling.
Effective aperture 76mm or maximum aperture 140mm.
Product data of Rock Drilling Tools
Technical data | ||
Percussion Oil Pressure | bar | 140 |
Percussion Oil Flow | l/min | 120-140 |
Rotation Oil Pressure | bar | 150 |
Rotation Oil Flow | l/min | 50-60 |
Rotation torque(max) | Nm | 1200 |
Rotation speed(max) | rpm | 150 |
Percussion frequency | min | 2500 |
Percussion energy | J | 540 |
Output energy | kW | 25 |
Drilling diameter | mm | 76 - 140 |
Weight | kg | 300 |
![]() |
